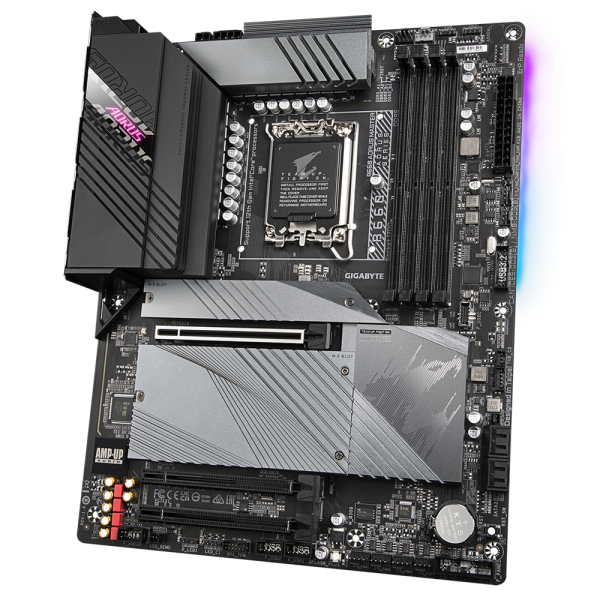

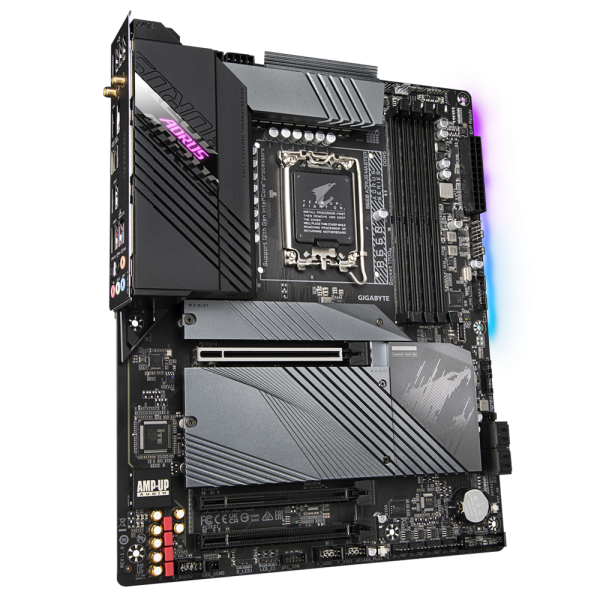

MB s1700 GIGABYTE B660 AORUS MASTER DDR5

Name: MB s1700 GIGABYTE B660 AORUS MASTER DDR5 - PC COOL DOO
Brand: GIGABYTE
SKU: -1
Price: 33200 RSD
Availability: OutOfStock
Rating: 88 (20 reviews)

Proizvod iz grupe: Matične ploče
Proizvođač: GIGABYTE
Nema na stanju

Šifra: 22245

Očekivani rok isporuke je 1-7 radnih dana

Artikal nije dostupan

Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.

CPU
1. LGA1700 socket: Support for 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
1. Intel^® B660 Express Chipset
Memory
1. Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® ALC1220-VB CODEC
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
WIFI Module
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  * The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector.
3. 1 x PCI Express x16 slot, running at x1 (PCIEX1)
  (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
3. 4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel^® Optane™ Memory Ready
* System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+2 USB 3.2 Gen 1 Hubs:
1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 2 x Thunderbolt™ add-in card connectors
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
20. 1 x reset button
21. 1 x Q-Flash Plus button
22. 1 x reset jumper
23. 2 x temperature sensor headers
24. 1 x Clear CMOS jumper

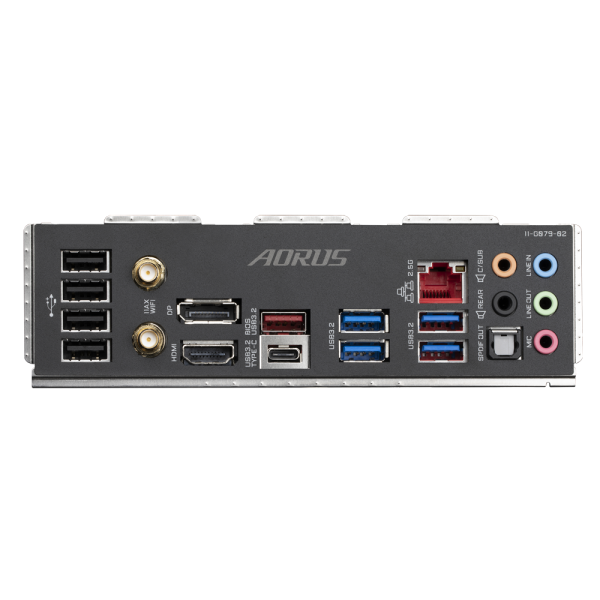

Back Panel Connectors
1. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red)
3. 4 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x DisplayPort
7. 1 x HDMI 2.0 port
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
7. Noise detection
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
