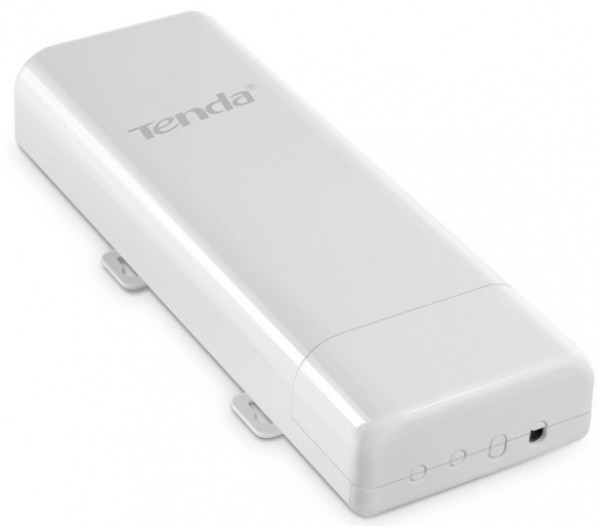

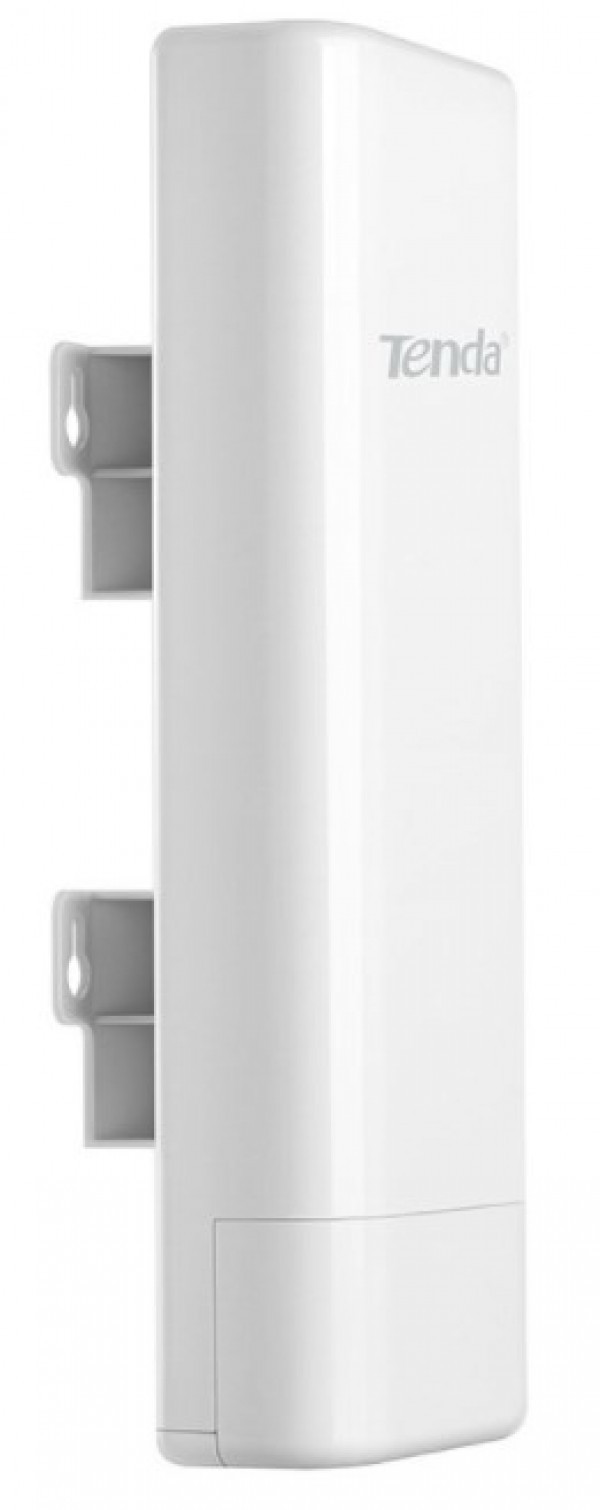

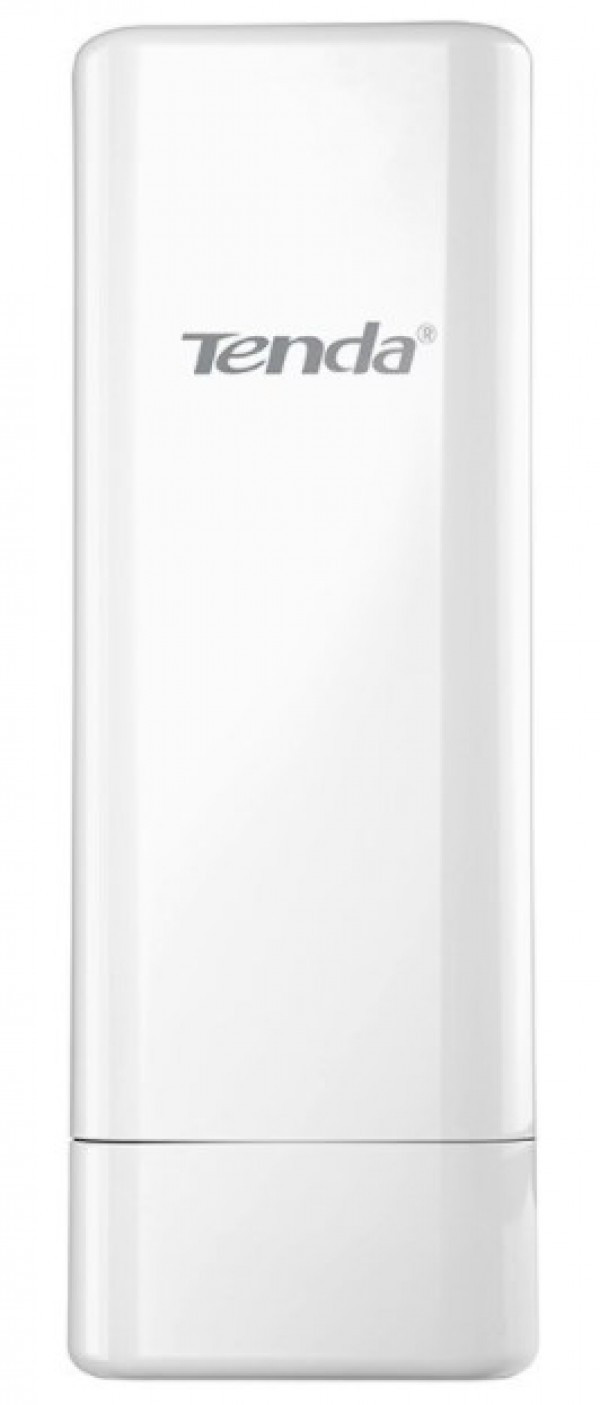

Tenda O4 outdoor long range Point to Point CPE 5GHz 300Mbps, 14dBi, 5km

5km Point to Point Outdoor CPE O4 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 14dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup. O4 adopts of independent power amplifier and 14dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km. Super channel-Extended Frequency O4 adopt of Qualcomm AR9344 chipset and special software mechanism optimization for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicensed 5GHz band and into clean spectrum. TD-MAX-TendaTDMA proprietary protocol TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios. In outdoor enviroment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become "hidden nodes" and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol. 10/20/30/40MHz Channel Bandwidth for better throughput O4 apply special optimization in software for register parameter to deliver 10/20/30/40MHz channel bandwidth option. It provides extra 10MHz and 30MHz channel bandwidth option to consumize according to applycation scenarios. When you choose 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better. Channel shift to avoid interferrence O4 provide Channel Shift feature to offset the central frequency 5MHz upper. It can avoid interference from nearby AP and deliver higher throughput. Dimension 270*94.86*67.5mm Deployment Pole Mount/Wall Mount Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Frequency Range 5GHz Compliant Standards IEEE 802.11a/n Maximum Wireless Rate 300Mbps Interfaces 1*10/100Mbps Ethernet Port Antenna Polarization: Dual Polarization Antennas Gain 14dbi Antenna Beamwidth: Horizontal: 30° Vertical: 30° GND 1*GND 1*Reset Button Power Consumption 8.5W Waterproof Level IP65 LED Indicator PoE/LAN,LED1,LED2,LED3 Power Method 24V0.5A Passive PoE Lightning Protection 6000V Passive PoE Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 21-25V DC Reception Sensitivity 11a 6Mbps -96dBm±1.5dBm 11n MCS0: -96±1.5dBm 11n MCS7: -72±1.5dBm Software TDMA Support Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless Radio:Support SSID Hidden:Support Wireless Client isolation:Support SSID Isolation:Support Channel Bandwidth:10/20/30/40MHz Channel Shift:Support Wireless Access Control:Support Weak Signal Client Limitation:Support Transmission Power:Adjustable power by 1dBm WMM Capable:Support APSD Capable:Support Wireless Security:64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 Transparent Bridge:Support VLAN Tagging for SSID:Support DHCP Server:Support VPN Pass-Through:PPTP,L2TP Remote Web access:Support Schedule Reboot:Support Page Timeout:Support Ping Watchdog:Support Dyndns: noip, dyndns.org Network Diagnoses:Ping, Traceroute, Signal Scan Time:Support Firmware upgrade:Support Backup/Restore Configuration:Support Username Managerment:Support System Logs:Support Managed By Controller:PC Software CPE Assistant Package Contents 1*5GHz 11n 14dBi 300Mbps outdoor CPE O4 1*PoE Power Adapter 1*Power cord 1*Quick Installation Guide Operation Temperature -30? ~ 60? Storage Temperature -40? ~ 70? Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing Default login IP 192.168.2.1 Default Login Username: admin Default Login Password: admin Certification:FCC/CE/RoHS
