Napajanje 120W LC Power LC120ITX Ext.for mini-ITX
Očekivani rok isporuke je 1-7 radnih dana
Ne odgovara Vam cena? Upišite cenu koja Vam je odgovarajuća.
Potrudićemo se da Vam damo najbolju ponudu.
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
Technical overview
| Power supply type | ITX |
| Input voltage | 90-264 V (2A/47-63 Hz) |
| Output voltage | 12 V (10 A) |
| Security circuitry | OVP = Over Voltage Protection SCP = Short Circuit Protection OPP = Over Power Protection |
| Efficiency | 88 % (220 V / max. output) |
| Standby consumption | < 0,5 W (no load) - ErP 2013 |
| Mark of conformity | CE |
| Weight (retail) | 0,654 kg |
| Weight (AC adaptor) | 0,421 kg |
| Dimensions (AC adaptor) (height x width x depth) | 33 x 61 x 156 mm |
| Dimensions (Connector) (outer x inner x pin length) | 5,5 x 2,5 x 12 mm |
| Barcode | 4260070125225 |
| Manufacturer code | LC120ITX |
PDF:
Characteristics:

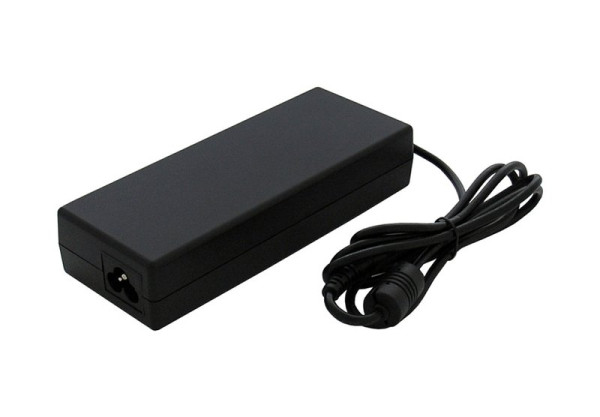

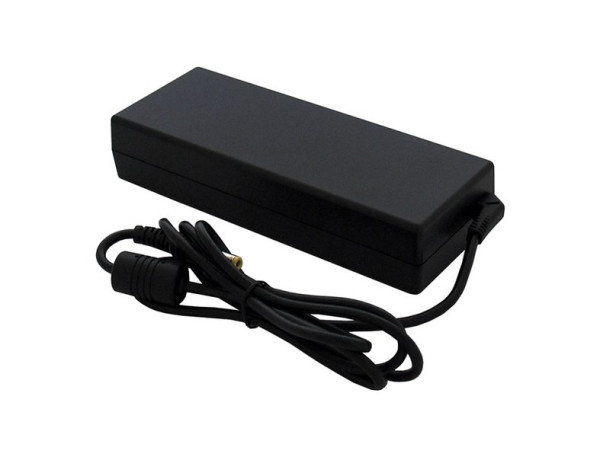

The LC120ITX is an external, passive switching AC adaptor for Mini-ITX computer systems which include an ATX DC/DC converter.
- 120W max.
- High efficiency (88%) & low energy consumption
- Stabilized output, low ripple & low interference
- Over Voltage Protection, Short Circuit protection, Over Power Protection
- External / passive

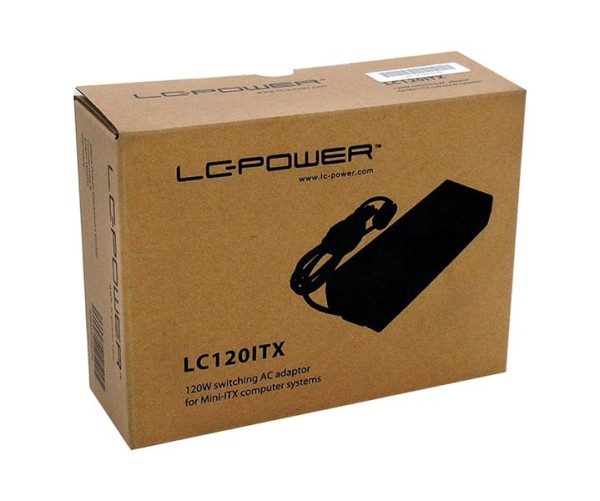

Included in delivery:
AC adaptor & power cord
- Naziv artikla:
- Napajanje 120W LC Power LC120ITX Ext.for mini-ITX
- Naziv i vrsta robe:
- Napajanja
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
Technical overview
| Power supply type | ITX |
| Input voltage | 90-264 V (2A/47-63 Hz) |
| Output voltage | 12 V (10 A) |
| Security circuitry | OVP = Over Voltage Protection SCP = Short Circuit Protection OPP = Over Power Protection |
| Efficiency | 88 % (220 V / max. output) |
| Standby consumption | < 0,5 W (no load) - ErP 2013 |
| Mark of conformity | CE |
| Weight (retail) | 0,654 kg |
| Weight (AC adaptor) | 0,421 kg |
| Dimensions (AC adaptor) (height x width x depth) | 33 x 61 x 156 mm |
| Dimensions (Connector) (outer x inner x pin length) | 5,5 x 2,5 x 12 mm |
| Barcode | 4260070125225 |
| Manufacturer code | LC120ITX |
PDF:
Characteristics:
The LC120ITX is an external, passive switching AC adaptor for Mini-ITX computer systems which include an ATX DC/DC converter.
- 120W max.
- High efficiency (88%) & low energy consumption
- Stabilized output, low ripple & low interference
- Over Voltage Protection, Short Circuit protection, Over Power Protection
- External / passive
Included in delivery:
AC adaptor & power cord
