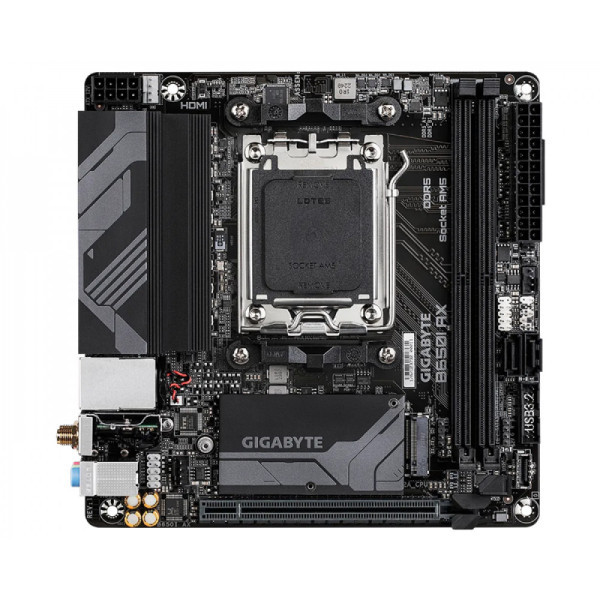

MB AM5 GIGABYTE B650I AX Rev 1.0

MB AM5 GIGABYTE B650I AX Rev 1.0

Šifra: 93417

Očekivani rok isporuke je 1-7 radnih dana





    Artikal nije dostupan

    Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.

    • CPU
      1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD B650
    • Memory
      1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
      2. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
      3. Dual channel memory architecture
      4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
      (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor:
      1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
        * Support for DisplayPort 1.4 version.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version and HDCP 2.3.
        ** Support native HDMI 2.1 TMDS compatible ports.
      (Graphics specifications may vary depending on CPU support.)
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • LAN
      1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module
      Realtek® Wi-Fi 6E RTL8852CE
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard
      (Actual data rate may vary depending on environment and equipment.)
    • Expansion Slots
      1 x PCI Express x16 slot, integrated in the CPU:
      1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
      2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
      3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
        * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
    • Storage Interface
      1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
      1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
      2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
      3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
      2 x SATA 6Gb/s connectors
      RAID 0 and RAID 1 support for NVMe SSD storage devices
      RAID 0 and RAID 1 support for SATA storage devices
    • USB
      CPU:
      1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
      2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
      3. 1 x USB 2.0/1.1 port on the back panel
      Chipset:
      1. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
      2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
      3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 2 x system fan headers
      5. 1 x addressable LED strip header
      6. 1 x RGB LED strip header
      7. 1 x M.2 Socket 3 connector
      8. 2 x SATA 6Gb/s connectors
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x speaker header
      12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
      13. 1 x USB 3.2 Gen 1 header
      14. 1 x USB 2.0/1.1 header
      15. 1 x Clear CMOS jumper
      16. 1 x chassis intrusion header

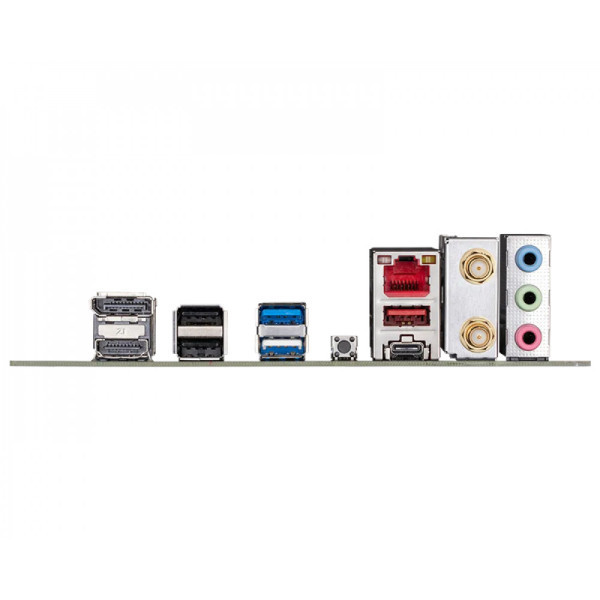

    • Back Panel Connectors
      1. 1 x DisplayPort
      2. 1 x HDMI port
      3. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
      4. 1 x USB 3.2 Gen 2 Type-A port (red)
      5. 1 x USB 3.2 Gen 1 port
      6. 3 x USB 2.0/1.1 ports
      7. 1 x Q-Flash Plus button
      8. 1 x RJ-45 port
      9. 2 x SMA antenna connectors (2T2R)
      10. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the fan you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for GIGABYTE Control Center (GCC)
        * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      2. Support for Q-Flash
      3. Support for Q-Flash Plus
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm

    • Naziv artikla:
    • MB AM5 GIGABYTE B650I AX Rev 1.0
    • Naziv i vrsta robe:
    • Matične ploče
    • Uvoznik:
    • Dostupno na ambalaži proizvoda
    • Zemlja porekla:
    • Dostupno na ambalaži proizvoda
    • Prava potrošača:
    • Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
