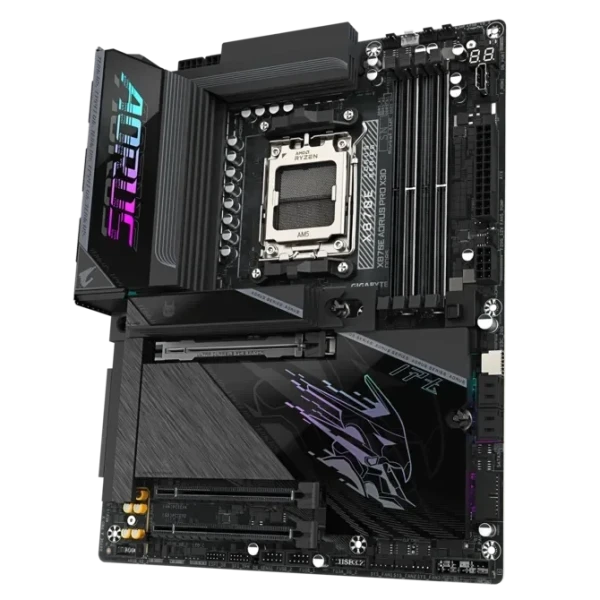

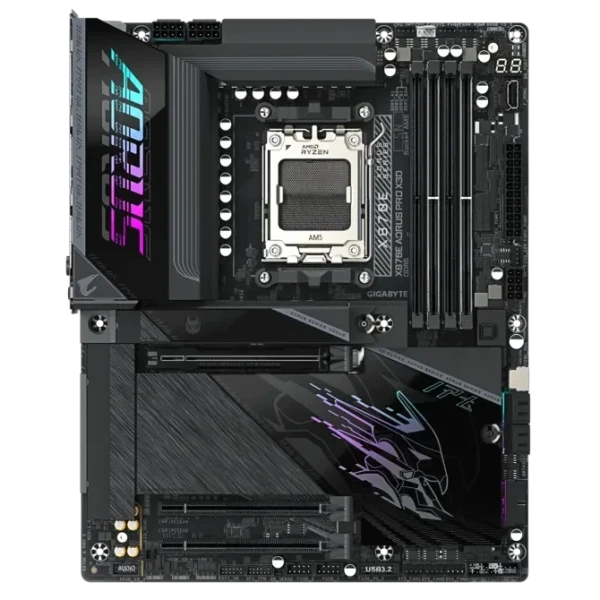

Matična ploča Gigabyte AM5 X870E AORUS PRO X3D
- Proizvod iz grupe: Matične ploče
- Proizvođač: GIGABYTE
- Na stanju
Šifra: 113148
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
48.200,00
Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Model | Gigabyte X870E AORUS PRO X3D Wi-Fi7 AM5 DDR5 ATX Matična ploča |
| Socket | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870E |
| Podrška za procesore | AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Podržani DDR5 moduli 9000 (O.C.) / 8800 (O.C.) / 8600 (O.C.) / 8400 (O.C.) / 8200 (O.C.) / 8000 (O.C.) / 7800 (O.C.) / 7600 (O.C.) / 7200 (O.C.) / 7000 (O.C.) / 6800 (O.C.) / 6600 (O.C.) / 6400 (O.C.) / 6200 (O.C.) / 6000 (O.C.) / 5600 (O.C.) / 5200 / 4800 MT/s 4 × DDR5 DIMM slota sa podrškom do 256GB (maksimalno 64GB po jednom DIMM modulu) sistemske memorije. Dvokanalna (Dual Channel) arhitektura memorije. Podrška za non-ECC un-buffered DIMM memorijske module tipa 1Rx8 / 2Rx8 / 1Rx16. Podrška za AMD EXPO (AMD EXtended Profiles for Overclocking) i Extreme Memory Profile (XMP) memorijske module. |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz Podrška za DisplayPort 1.4 version and HDR Integrisani grafički processor sa AMD Radeon Graphics podrška: - 1 x HDMI port, podrška maksimalne rezolucije od 4096x2160 60Hz Podrška za HDMI 2.1 version, HDCP 2.3, i HDR. Podrška za native HDMI 2.1 TMDS kompatibilne portove. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz Podrška za HDMI 1.4 version |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Qualcomm Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Podrška za S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back pane CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) For precautions regarding the fast charging function, refer to "USB Type-C Header" in Chapter 2-7, "Internal Connectors." - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers |

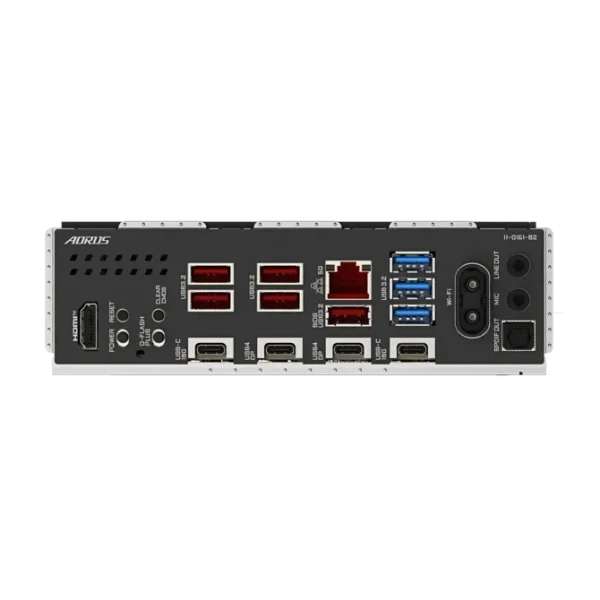

| Konektori na zadnjoj strani | 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C ports, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Noise detection |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
| Link ka proizvodjacu | https://www.gigabyte.com/ |
- Naziv artikla:
- Matična ploča Gigabyte AM5 X870E AORUS PRO X3D
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
