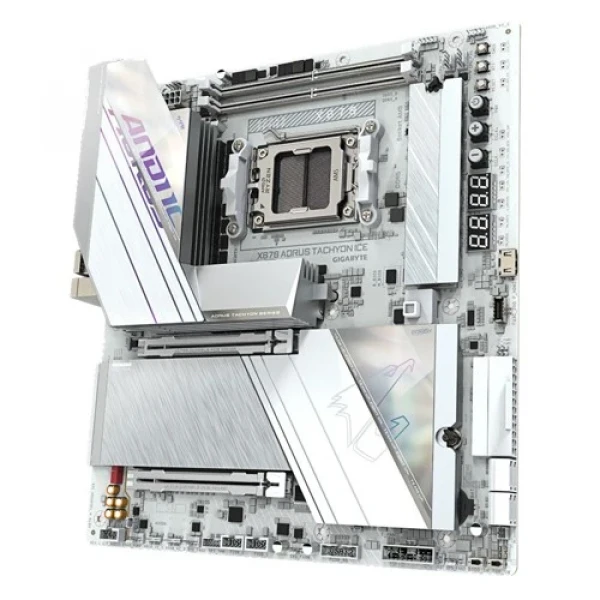

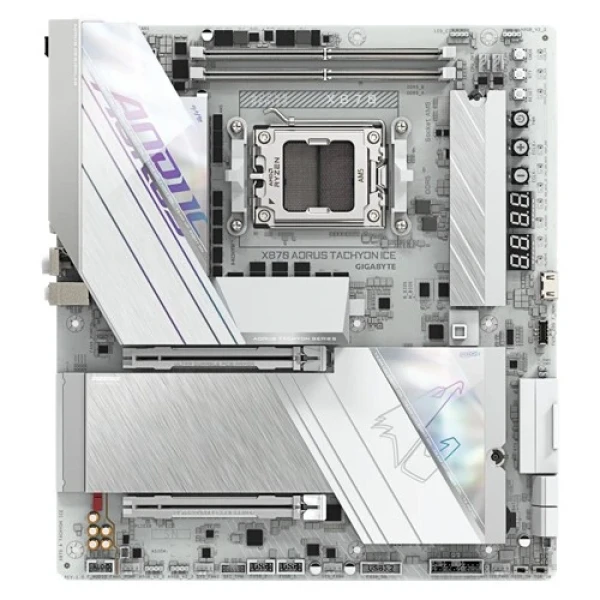

Matična ploca Gigabyte AM5 X870 A TACHYON ICE
- Proizvod iz grupe: Matične ploče
- Proizvođač: GIGABYTE
- Na stanju
Šifra: 102862
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
64.860,00
Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors<br> AMD Ryzen 8000 Series Processors<br> AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 2x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory<br> Dual channel memory architecture<br> Support for ECC and non-ECC Un-buffered DIMM memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules<br> |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz<br> Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz<br> Support for HDMI 1.4 version.<br> |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.)<br> |
| Bluetooth | BLUETOOTH 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br> The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller:<br> - 1 x USB4 USB Type-C port on the back panel<br> CPU:<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers |

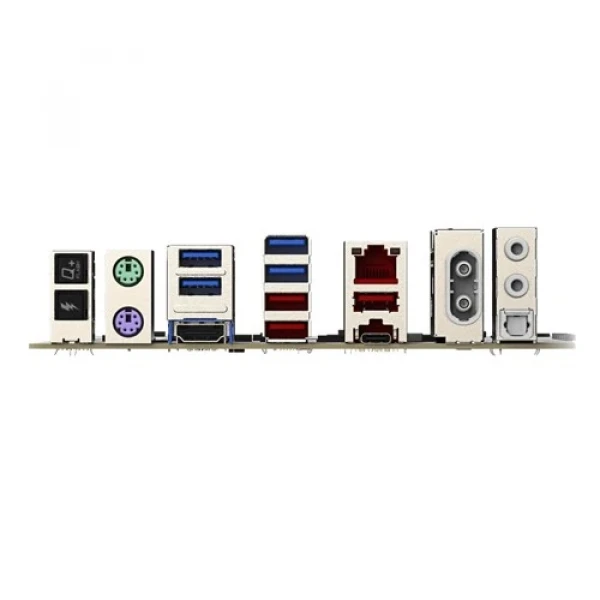

| Konektori na zadnjoj strani | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x power button (PWR)<br> 1 x reset button(RESET)<br> 1 x Clear CMOS button (CMOS)<br> 1 x Cold Reset button (RTY)<br> 1 x CPU Clock up button (ECLK+)<br> 1 x CPU Clock down button (ECLK-)<br> 1 x BIOS switch (BIOS_SW)<br> 1 x OC Trigger switch (TGR_SW)<br> Voltage Measurement Points |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 2 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Extended ATX |
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors<br> AMD Ryzen 8000 Series Processors<br> AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 2x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory<br> Dual channel memory architecture<br> Support for ECC and non-ECC Un-buffered DIMM memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules<br> |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz<br> Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz<br> Support for HDMI 1.4 version.<br> |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.)<br> |
| Bluetooth | BLUETOOTH 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br> The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller:<br> - 1 x USB4 USB Type-C port on the back panel<br> CPU:<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Konektori na zadnjoj strani | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x power button (PWR)<br> 1 x reset button(RESET)<br> 1 x Clear CMOS button (CMOS)<br> 1 x Cold Reset button (RTY)<br> 1 x CPU Clock up button (ECLK+)<br> 1 x CPU Clock down button (ECLK-)<br> 1 x BIOS switch (BIOS_SW)<br> 1 x OC Trigger switch (TGR_SW)<br> Voltage Measurement Points |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 2 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Extended ATX |
- Naziv artikla:
- Matična ploca Gigabyte AM5 X870 A TACHYON ICE
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors<br> AMD Ryzen 8000 Series Processors<br> AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 2x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory<br> Dual channel memory architecture<br> Support for ECC and non-ECC Un-buffered DIMM memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules<br> |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz<br> Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz<br> Support for HDMI 1.4 version.<br> |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.)<br> |
| Bluetooth | BLUETOOTH 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br> The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller:<br> - 1 x USB4 USB Type-C port on the back panel<br> CPU:<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Konektori na zadnjoj strani | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x power button (PWR)<br> 1 x reset button(RESET)<br> 1 x Clear CMOS button (CMOS)<br> 1 x Cold Reset button (RTY)<br> 1 x CPU Clock up button (ECLK+)<br> 1 x CPU Clock down button (ECLK-)<br> 1 x BIOS switch (BIOS_SW)<br> 1 x OC Trigger switch (TGR_SW)<br> Voltage Measurement Points |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 2 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Extended ATX |
