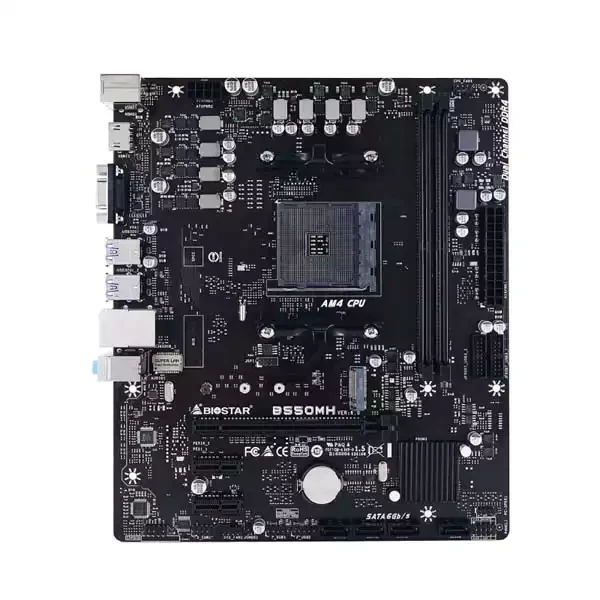

Matična ploča AM4 Biostar B550MH VGAHDMIM.2
- Proizvod iz grupe: Matične ploče
- Proizvođač: Biostar
- Na stanju
Šifra: 49190
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
9.273,00
Ne odgovara Vam cena? Upišite cenu koja Vam je odgovarajuća.
Potrudićemo se da Vam damo najbolju ponudu.
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Čipset | AMD® B550 |
| Format ploče | Micro ATX |
| Podržani procesori | Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processorsSupport for future AMD Ryzen processors with BIOS update |
| Podržana memorija | DDR4 |
| Memorija | 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 21333rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 21333rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 21332 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB MemoryEach DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module |
| Integrisana grafička karta | By CPU modelSupports DX12Supports HDCP |
| Slotovi za proširenje | 1 x PCIe 4.0/ 3.0 x 16 Slot:Supports PCIe 4.0 x 16 mode with AMD Ryzen™ processors. (Matisse only)Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only)2 x PCIe 3.0 x 1 Slot |
| Storage | 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 101 x M.2 (M Key) Socket:Supports M.2 Type 2242/ 2260/ 2280 SSD moduleSupports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)Supports SATA III (6.0Gb/s) SSD* M.2 (M Key) Socket (M2_PCIe-SATA1):The bandwidth is depended on CPU.Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. |
| Mrežna karta | Realtek RTL8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capabilitySupports Super LAN Surge Protection |
| Zvučna karta | ALC8877.1 Channels, High Definition Audio, Hi-Fi (Front) |
| USB | 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |

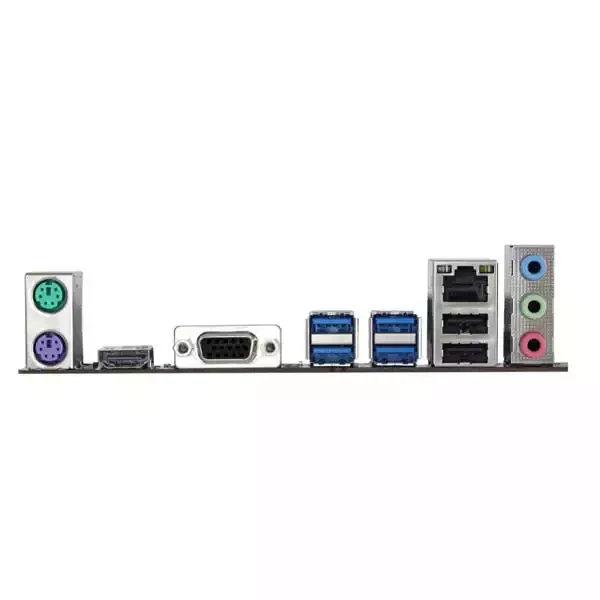

| Konektori na zadnjoj strani | 1 x PS/2 Keyboard1 x PS/2 Mouse1 x HDMI Port1 x VGA Port1 x LAN port4 x USB 3.2 (Gen1) Ports2 x USB 2.0 Ports3 x Audio Jack |
| Interni konektori | 4 x SATA III (6.0Gb/s) Connectors2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Clear CMOS Header1 x Internal Stereo Speaker Header1 x COM Port Header |
- Naziv artikla:
- Matična ploča AM4 Biostar B550MH VGAHDMIM.2
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Čipset | AMD® B550 |
| Format ploče | Micro ATX |
| Podržani procesori | Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processorsSupport for future AMD Ryzen processors with BIOS update |
| Podržana memorija | DDR4 |
| Memorija | 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 21333rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 21333rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 21332 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB MemoryEach DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module |
| Integrisana grafička karta | By CPU modelSupports DX12Supports HDCP |
| Slotovi za proširenje | 1 x PCIe 4.0/ 3.0 x 16 Slot:Supports PCIe 4.0 x 16 mode with AMD Ryzen™ processors. (Matisse only)Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only)2 x PCIe 3.0 x 1 Slot |
| Storage | 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 101 x M.2 (M Key) Socket:Supports M.2 Type 2242/ 2260/ 2280 SSD moduleSupports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)Supports SATA III (6.0Gb/s) SSD* M.2 (M Key) Socket (M2_PCIe-SATA1):The bandwidth is depended on CPU.Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. |
| Mrežna karta | Realtek RTL8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capabilitySupports Super LAN Surge Protection |
| Zvučna karta | ALC8877.1 Channels, High Definition Audio, Hi-Fi (Front) |
| USB | 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| Konektori na zadnjoj strani | 1 x PS/2 Keyboard1 x PS/2 Mouse1 x HDMI Port1 x VGA Port1 x LAN port4 x USB 3.2 (Gen1) Ports2 x USB 2.0 Ports3 x Audio Jack |
| Interni konektori | 4 x SATA III (6.0Gb/s) Connectors2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Clear CMOS Header1 x Internal Stereo Speaker Header1 x COM Port Header |
