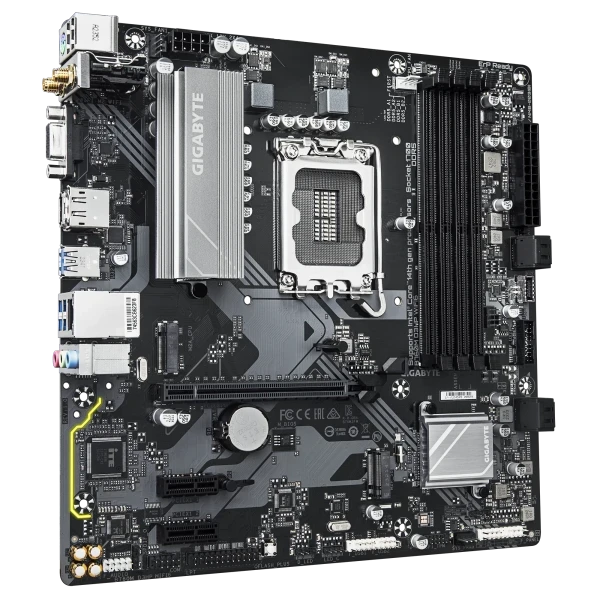

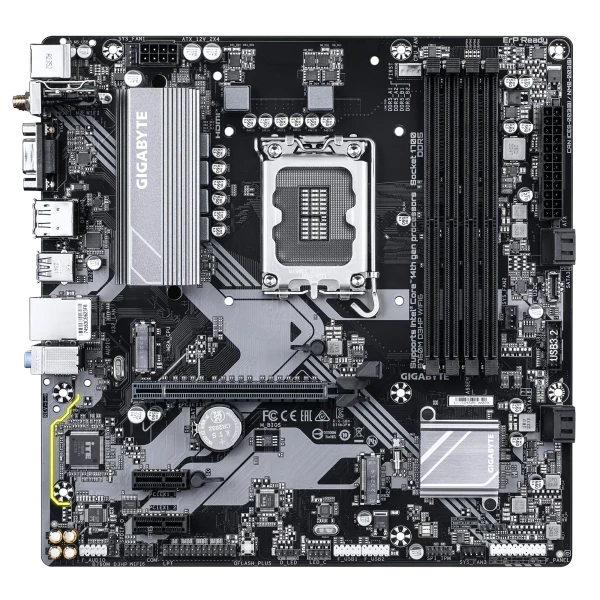

Maticna ploca 1700 Gigabyte B760M D3HP WIFI6 DDR5 VGAHDMIDPM.2
- Proizvod iz grupe: Matične ploče
- Proizvođač: GIGABYTE
- Na stanju
Šifra: 93272
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
13.970,00
Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors (Check GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 14th & 13th Gen Intel® Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, and Celeron®: DDR5 4800/4400 MT/s |
| 4 x DDR5 DIMM sockets, up to 192 GB (48 GB per DIMM) | |
| Dual channel memory architecture | |
| Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (non-ECC mode) | |
| Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Supports Extreme Memory Profile (XMP) | |
| Onboard Graphics | Intel® HD Graphics support |
| 1 x D-Sub (1920x1200@60Hz max), 1 x HDMI (4096x2160@60Hz max) with HDMI 2.1 and HDCP 2.3 | |
| 1 x DisplayPort (4096x2304@60Hz max), DisplayPort 1.2 and HDCP 2.3 | |
| Supports up to triple-display | |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Supports S/PDIF Out | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6 RTL8851BE: WIFI a/b/g/n/ac/ax, 2.4/5 GHz frequency, Bluetooth 5.3 |
| Supports 11ax 80MHz wireless standard | |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0, x16) for graphics or NVMe SSD |
| 2 x PCIe x1 (PCIe 3.0, x1) | |
| Storage Interface | 1 x M.2 (Socket 3, M Key, 2280 PCIe 4.0 x4/x2 SSD) |
| 1 x M.2 (Socket 3, M Key, 2280 PCIe 4.0 x4/x2 SSD) | |
| 4 x SATA 6Gb/s | |
| RAID 0, RAID 1, RAID 5, RAID 10 support | |
| USB | 1 x USB Type-C® (USB 3.2 Gen 1, internal) |
| 5 x USB 3.2 Gen 1 (3 on the back panel, 2 internal) | |
| 2 x USB 2.0/1.1 ports (back panel) | |
| 4 x USB 2.0/1.1 ports (internal) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 connectors, 4 x SATA 6Gb/s | |
| 1 x front panel header | |
| 1 x USB Type-C® header (USB 3.2 Gen 1) | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header | |
| 1 x serial port header | |
| 1 x parallel port header | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

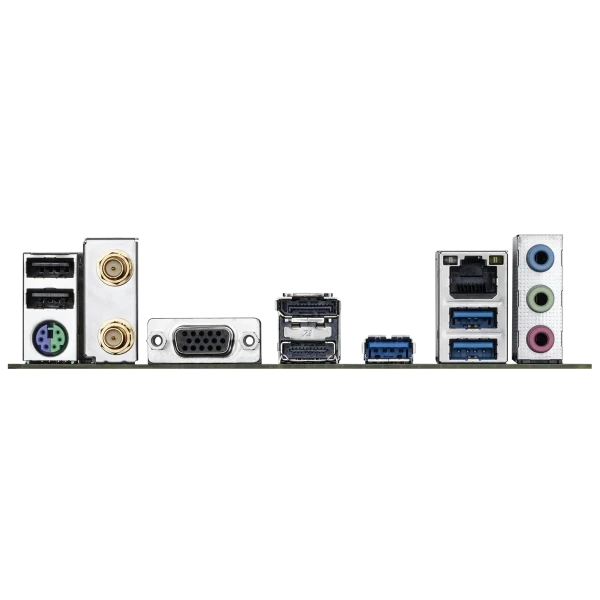

| Back Panel Connectors | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x SMA antenna connectors | |
| 1 x D-Sub port | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (dependent on installed fan) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC) Support, Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
- Naziv artikla:
- Maticna ploca 1700 Gigabyte B760M D3HP WIFI6 DDR5 VGAHDMIDPM.2
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
