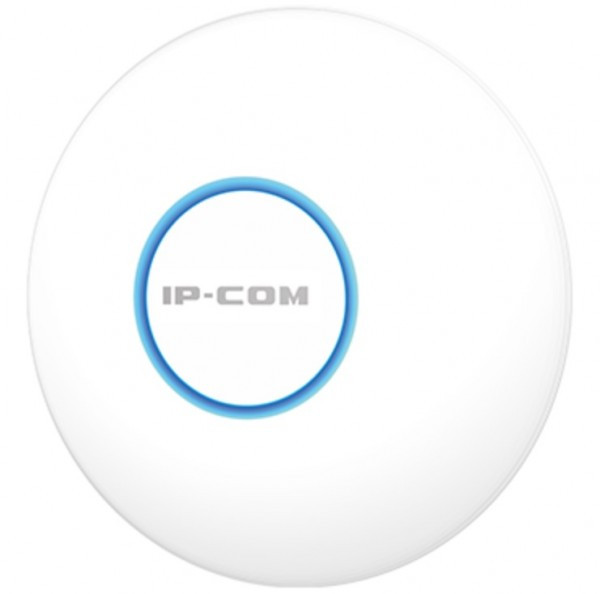

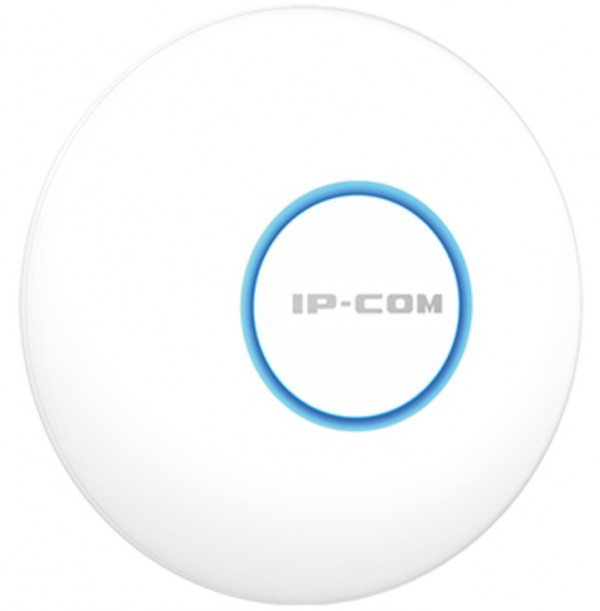

IP-COM IUAP-AC-LR Access Point Dual-Band 2,4+5GHz Long Range AP, Client+AP, MU-MIMO, 200m

Compliant with IEEE 802.11ac, iUAP-AC-LR is a gigabit dual-band ceiling access point, offering a concurrent data rate as high as 1317 Mbps. Powered by MU-MIMO technology, a single iUAP-AC-LR can simultaneously communicate with multiple clients, greatly improving throughput and enhancing user experience. The built-in omni-directional antennas optimize signal radiating directions and broaden the wireless coverage of a single AP. iUAP-AC-LR can be powered by PoE sourcing equipment that compliant with IEEE 802.3at. With ceiling installation design and sleek appearance, iUAP-AC-LR simplifies wireless networking for enterprises, hotels and other public indoor spaces. MU-MIMO for high throughput Up to 1317 Mbps dual-band data rate 24V0.5A Passive PoE or IEEE 802.3at Gigabit PoE Port Wireless coverage up to 200 meters Frequency band 2.4 GHz, 5 GHz Wireless standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac 2.4 GHz data rate 1 - 450 Mbps 5 GHz data rate 6 - 867 Mbps Ethernet port 1*10/100/1000 Base-TX port Button 1*Reset LED indicator 1*Power Max. power consumption 13.5W (Full-load) Power supply standard IEEE 802.3at & 24V, 0.5A Passive PoE Antenna gain 3*4 dBi 2.4 GHz Max. output power 29 +/- 1.5 dBm 5 GHz Max. output power 26 +/- 1.5 dBm 802.11b RX sensitivity -94 dBm 2.4 GHz 802.11n (MCS7) RX sensitivity -73 dBm 5 GHz 802.11a RX sensitivity -93 dBm 5 GHz 802.11n (MCS7) RX sensitivity -74 dBm Software Specification Operating modes AP, Client+AP Hide SSID Supported Max. No. of SSID 2.4 GHz: 8 5 GHz: 4 Max. connected clients 2.4 GHz: 128 5 GHz: 256 WEP Supported WPA-PSK AES/TKIP WPA2-PSK AES/TKIP WPA Supported WPA2 Supported Access control MAC address-based Adjustable power transmit Supported Frequency analysis Supported AP isolation Supported Connected clients control Supported RSSI threshold Supported Transmission Power Adjustable by 1 dBm WMM Supported VLAN tagging for SSID Supported LED indicator control Supported Diagnostics tool Ping, Traceroute Scheduled reboot Supported Reboot at specified interval Supported Management Web UI System logs Supported Firmware upgrade Local and AC upgrade Reboot Local and AC reboot Reset Local and AC reset Backup configuration Supported Restore configuration Supported Operating Environment Default login IP address 192.168.0.254 Default user name admin Default password admin Operating temperature -10? - 45? Operating humidity (10% - 90%) RH, non-condensing Storage temperature -30? - 70? Storage humidity (10% - 90%) RH, non-condensing Category Ceiling Dimensions 176*176*43.5 mm tenda
