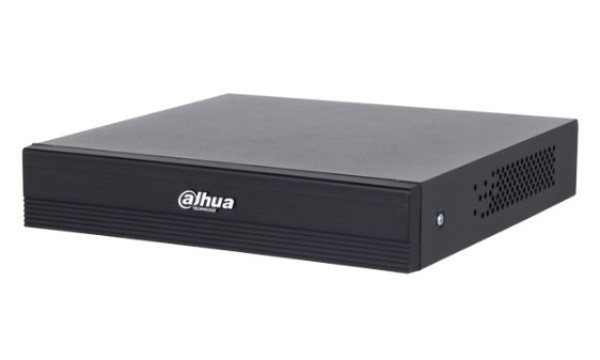

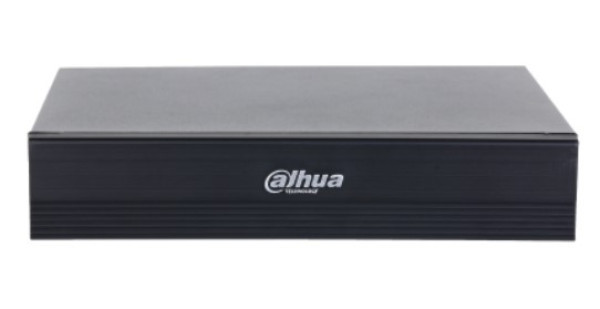

Dahua DVR XVR1B08-I/T Two way 8CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Record
- Proizvod iz grupe: HDCVI kamere, HDCVI snimači
- Proizvođač: DAHUA
- Na stanju
Šifra: 101422
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
12.840,00
Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
*Dolink verzija kompatibilna sa oblakom: DMSS V2.0.1 i novije verzije, Dolink care V2.5.1 i novije verzije.
-8-kanalni dvosmerni razgovor preko koaksijalnog kabla omogucava besprekornu komunikaciju između kamere, klijenta i snimača.
-8-kanalni SMD Plus za analogne kanale koji omogucava uređaju da pokrece precizne alarme za ljude i vozila.
-8-kanalno AI kodiranje štedi prostor za skladištenje i propusni opseg, a istovremeno zadržava detalje o ciljevima u video zapisima.
-Podržava HDCVI, AHD, TVI, CVBS i IP video ulaz.
-Podržava do 10-kanalni IP ulaz za kameru, a svaki kanal može biti do 6 MP. Dolazni propusni opseg dostiže 40 Mbps.
-Podržava pristup Wi-Fi kamerama, što ga čini pogodnim za širok spektar scena.
--Pametna H.265+ i H.265 dvostruka video kompresija.
Sistem:
Glavni procesor: Industrijski procesor
Operativni sistem: Ugrađeni Linux
Operativni interfejs: Web; Lokalni grafički korisnički interfejs
SMD
SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera: 10 channels
Audio and Video
Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input:
1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input:
Up to 10 channels of IPC access
2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.
Encoding Capacity:
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual-stream: Yes
Video Bit Rate: 32 kbps–4096 kbps
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
Video Output:
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display:
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access:
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression: G.711a; G.711u; PCM
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;
SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access: iOS; Android
Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser: Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode: General; alarm; motion detection
Recording Playback: 1/4/9
Backup Method: USB device and network
Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm: Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm: Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm: SMD Plus
Alarm Linkage: Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Ports
Audio Input:
1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output:
1-channel RCA
Two-way Talk:
Coaxial two-way talk: 8-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
Disk Interface:
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
USB: 2 (2 rear USB 2.0 ports)
HDMI: 1
VGA: 1
Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply: 12 VDC, 1.5 A
Power Consumption: <7 W (without HDD)
Net Weight: 0.57 kg (1.26 lb)
Gross Weight: 0.97 kg (2.14 lb)
Product Dimensions: 197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63") (W × D × H)
Packaging Dimensions: 332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)
Operating Temperature: –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity: 10%–90% (RH), non-condensing
Installation: Desktop
Certifications:
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
-8-kanalni dvosmerni razgovor preko koaksijalnog kabla omogucava besprekornu komunikaciju između kamere, klijenta i snimača.
-8-kanalni SMD Plus za analogne kanale koji omogucava uređaju da pokrece precizne alarme za ljude i vozila.
-8-kanalno AI kodiranje štedi prostor za skladištenje i propusni opseg, a istovremeno zadržava detalje o ciljevima u video zapisima.
-Podržava HDCVI, AHD, TVI, CVBS i IP video ulaz.
-Podržava do 10-kanalni IP ulaz za kameru, a svaki kanal može biti do 6 MP. Dolazni propusni opseg dostiže 40 Mbps.
-Podržava pristup Wi-Fi kamerama, što ga čini pogodnim za širok spektar scena.
--Pametna H.265+ i H.265 dvostruka video kompresija.
Sistem:
Glavni procesor: Industrijski procesor
Operativni sistem: Ugrađeni Linux
Operativni interfejs: Web; Lokalni grafički korisnički interfejs
SMD
SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera: 10 channels
Audio and Video
Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input:
1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input:
Up to 10 channels of IPC access
2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.
Encoding Capacity:
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual-stream: Yes
Video Bit Rate: 32 kbps–4096 kbps
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
Video Output:
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display:
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access:
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression: G.711a; G.711u; PCM
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;
SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access: iOS; Android
Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser: Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode: General; alarm; motion detection
Recording Playback: 1/4/9
Backup Method: USB device and network
Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm: Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm: Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm: SMD Plus
Alarm Linkage: Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Ports
Audio Input:
1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output:
1-channel RCA
Two-way Talk:
Coaxial two-way talk: 8-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
Disk Interface:
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
USB: 2 (2 rear USB 2.0 ports)
HDMI: 1
VGA: 1
Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply: 12 VDC, 1.5 A
Power Consumption: <7 W (without HDD)
Net Weight: 0.57 kg (1.26 lb)
Gross Weight: 0.97 kg (2.14 lb)
Product Dimensions: 197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63") (W × D × H)
Packaging Dimensions: 332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)
Operating Temperature: –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity: 10%–90% (RH), non-condensing
Installation: Desktop
Certifications:
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
- Naziv artikla:
- Dahua DVR XVR1B08-I/T Two way 8CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Record
- Naziv i vrsta robe:
- HDCVI kamere, HDCVI snimači
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
