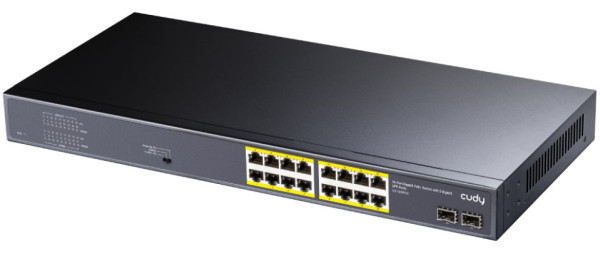

Cudy GS1020PS2 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP ports 200W
- Proizvod iz grupe: Mrežna oprema
- Proizvođač: CUDY
- Nema na stanju
Šifra: 29429
Očekivani rok isporuke je 1-7 radnih dana
Artikal nije dostupan
Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
-IEEE 802.3af / 802.3at standard compliant
-200-watt total PoE power budget, up to 30-watt per port
-16xGbE PoE+Port+2xSFP/GbE Combo Port
-CCTV Mode supports remote power&data feeding up to 250M
-VLAN mode supports 16 POE+ ports isolated from each other
-LED indicators for network diagnostics

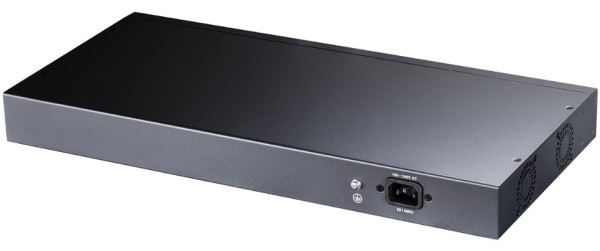

-19-inch metal case, internal power design
Connector Type: 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports
Network Media (Cable):
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
IEEE802.3z
PoE Parameters:
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port:30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media:
10BASE-T: Cat 5E UTP(=250 meter)
100BASE-TX: Cat5 or more UTP (=100 meter)
1000BASE-TX: Cat5 or more UTP (=100 meter)
Optical:
-MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
-Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification:
Bandwidth: 52Gbps
MAC: 8K
Packet Buffer Memory: 4M
Packet Forwarding Rate: 38.7Mpps
Power Supply Power input: AC100-240V 50/60Hz, Output: 52V3.85A, Power Budget: 200W
PWR
Power supply indicator (Red)
Lighting:Powered
Un-Light:No Power
1-26
RJ-45 LINK indicator (Green)
Lighting:1000M Connect
Un-Light:100M or Disconnect
1-26
RJ-45 ACT indicator (Green)
Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect
-200-watt total PoE power budget, up to 30-watt per port
-16xGbE PoE+Port+2xSFP/GbE Combo Port
-CCTV Mode supports remote power&data feeding up to 250M
-VLAN mode supports 16 POE+ ports isolated from each other
-LED indicators for network diagnostics
-19-inch metal case, internal power design
Connector Type: 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports
Network Media (Cable):
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
IEEE802.3z
PoE Parameters:
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port:30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media:
10BASE-T: Cat 5E UTP(=250 meter)
100BASE-TX: Cat5 or more UTP (=100 meter)
1000BASE-TX: Cat5 or more UTP (=100 meter)
Optical:
-MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
-Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification:
Bandwidth: 52Gbps
MAC: 8K
Packet Buffer Memory: 4M
Packet Forwarding Rate: 38.7Mpps
Power Supply Power input: AC100-240V 50/60Hz, Output: 52V3.85A, Power Budget: 200W
PWR
Power supply indicator (Red)
Lighting:Powered
Un-Light:No Power
1-26
RJ-45 LINK indicator (Green)
Lighting:1000M Connect
Un-Light:100M or Disconnect
1-26
RJ-45 ACT indicator (Green)
Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect
- Naziv artikla:
- Cudy GS1020PS2 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP ports 200W
- Naziv i vrsta robe:
- Mrežna oprema
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
-IEEE 802.3af / 802.3at standard compliant
-200-watt total PoE power budget, up to 30-watt per port
-16xGbE PoE+Port+2xSFP/GbE Combo Port
-CCTV Mode supports remote power&data feeding up to 250M
-VLAN mode supports 16 POE+ ports isolated from each other
-LED indicators for network diagnostics
-19-inch metal case, internal power design
Connector Type: 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports
Network Media (Cable):
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
IEEE802.3z
PoE Parameters:
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port:30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media:
10BASE-T: Cat 5E UTP(=250 meter)
100BASE-TX: Cat5 or more UTP (=100 meter)
1000BASE-TX: Cat5 or more UTP (=100 meter)
Optical:
-MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
-Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification:
Bandwidth: 52Gbps
MAC: 8K
Packet Buffer Memory: 4M
Packet Forwarding Rate: 38.7Mpps
Power Supply Power input: AC100-240V 50/60Hz, Output: 52V3.85A, Power Budget: 200W
PWR
Power supply indicator (Red)
Lighting:Powered
Un-Light:No Power
1-26
RJ-45 LINK indicator (Green)
Lighting:1000M Connect
Un-Light:100M or Disconnect
1-26
RJ-45 ACT indicator (Green)
Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect
