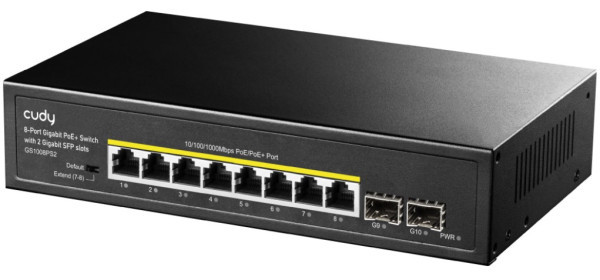

Cudy GS1008PS2
- Proizvod iz grupe: Mrežna oprema
- Proizvođač: CUDY
- Nema na stanju
Šifra: 29428
Očekivani rok isporuke je 1-7 radnih dana
Artikal nije dostupan
Za sve porudžbine čija je vrednost do 20.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 20.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
-8 x gigabit PoE+ ports and 2 x gigabit SFP slots
-120 watts total PoE power budget
-Extend mode(Port #7 ~ #8) supports PoE feeding up to 250 m
-IEEE 802.3af / 802.3at standard compliant
-IEEE 802.3X standard ?ow control
-Panel indicator monitoring status and help failure analysis
Power: AC100-240V50/60Hz
Ethernet: 8* Gigabit PoE Ports / 2* Gigabit SFP Ports
Chipset: 2*RTL8367S / RTL8238B
Bandwidth: 20Gbps
Pack forward rate: 14.88Mpps
MAC address: 2K
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF: 100000 Hours
Network Protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
PoE Protocol:
IEEE802.3af(15.4W)
IEEE802.3at(30W)
Industry Standard:
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge)
Network Medium:
10Base-T : Cat3, 4, 5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or above UTP(=100m)
Optical Medium
Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
LED Indicator: PWR (Power),1-10 Green Light (Link&Data)
PWR:
On: Powered on
Off: Powered off
1-10 Green Light (Link&Data)
On: Link normal
Off: Link blocked
Flashing: Data transmitting
DIP Switch
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog)
Structure Size
Product Dimensions: 220*161*44mm
Package Dimensions: 315*215*85mm
Product N.W: 0.88kg
Product G.W: 1.38kg
Packing Info
Carton Dimensions: 445*445*335mm
Packing Quantity: 10 PCS
Packing Weight: 14.8KG
Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V2.3A
Power Consumption <30W
Working Environment:
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
-8 x gigabit PoE+ ports and 2 x gigabit SFP slots
-120 watts total PoE power budget
-Extend mode(Port #7 ~ #8) supports PoE feeding up to 250 m
-IEEE 802.3af / 802.3at standard compliant
-IEEE 802.3X standard ?ow control
-Panel indicator monitoring status and help failure analysis
Power: AC100-240V50/60Hz
Ethernet: 8* Gigabit PoE Ports / 2* Gigabit SFP Ports
Chipset: 2*RTL8367S / RTL8238B
Bandwidth: 20Gbps
Pack forward rate: 14.88Mpps
MAC address: 2K
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF: 100000 Hours
Network Protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
PoE Protocol:
IEEE802.3af(15.4W)
IEEE802.3at(30W)
Industry Standard:
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge)
Network Medium:
10Base-T : Cat3, 4, 5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or above UTP(=100m)
Optical Medium
Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
LED Indicator: PWR (Power),1-10 Green Light (Link&Data)
PWR:
On: Powered on
Off: Powered off
1-10 Green Light (Link&Data)
On: Link normal
Off: Link blocked
Flashing: Data transmitting
DIP Switch
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog)
Structure Size
Product Dimensions: 220*161*44mm
Package Dimensions: 315*215*85mm
Product N.W: 0.88kg
Product G.W: 1.38kg
Packing Info
Carton Dimensions: 445*445*335mm
Packing Quantity: 10 PCS
Packing Weight: 14.8KG
Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V2.3A
Power Consumption <30W
Working Environment:
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
-120 watts total PoE power budget
-Extend mode(Port #7 ~ #8) supports PoE feeding up to 250 m
-IEEE 802.3af / 802.3at standard compliant
-IEEE 802.3X standard ?ow control
-Panel indicator monitoring status and help failure analysis
Power: AC100-240V50/60Hz
Ethernet: 8* Gigabit PoE Ports / 2* Gigabit SFP Ports
Chipset: 2*RTL8367S / RTL8238B
Bandwidth: 20Gbps
Pack forward rate: 14.88Mpps
MAC address: 2K
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF: 100000 Hours
Network Protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
PoE Protocol:
IEEE802.3af(15.4W)
IEEE802.3at(30W)
Industry Standard:
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge)
Network Medium:
10Base-T : Cat3, 4, 5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or above UTP(=100m)
Optical Medium
Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
LED Indicator: PWR (Power),1-10 Green Light (Link&Data)
PWR:
On: Powered on
Off: Powered off
1-10 Green Light (Link&Data)
On: Link normal
Off: Link blocked
Flashing: Data transmitting
DIP Switch
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog)
Structure Size
Product Dimensions: 220*161*44mm
Package Dimensions: 315*215*85mm
Product N.W: 0.88kg
Product G.W: 1.38kg
Packing Info
Carton Dimensions: 445*445*335mm
Packing Quantity: 10 PCS
Packing Weight: 14.8KG
Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V2.3A
Power Consumption <30W
Working Environment:
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
- Naziv artikla:
- Cudy GS1008PS2
- Naziv i vrsta robe:
- Mrežna oprema
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
-8 x gigabit PoE+ ports and 2 x gigabit SFP slots
-120 watts total PoE power budget
-Extend mode(Port #7 ~ #8) supports PoE feeding up to 250 m
-IEEE 802.3af / 802.3at standard compliant
-IEEE 802.3X standard ?ow control
-Panel indicator monitoring status and help failure analysis
Power: AC100-240V50/60Hz
Ethernet: 8* Gigabit PoE Ports / 2* Gigabit SFP Ports
Chipset: 2*RTL8367S / RTL8238B
Bandwidth: 20Gbps
Pack forward rate: 14.88Mpps
MAC address: 2K
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF: 100000 Hours
Network Protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
PoE Protocol:
IEEE802.3af(15.4W)
IEEE802.3at(30W)
Industry Standard:
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge)
Network Medium:
10Base-T : Cat3, 4, 5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or above UTP(=100m)
Optical Medium
Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
LED Indicator: PWR (Power),1-10 Green Light (Link&Data)
PWR:
On: Powered on
Off: Powered off
1-10 Green Light (Link&Data)
On: Link normal
Off: Link blocked
Flashing: Data transmitting
DIP Switch
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog)
Structure Size
Product Dimensions: 220*161*44mm
Package Dimensions: 315*215*85mm
Product N.W: 0.88kg
Product G.W: 1.38kg
Packing Info
Carton Dimensions: 445*445*335mm
Packing Quantity: 10 PCS
Packing Weight: 14.8KG
Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V2.3A
Power Consumption <30W
Working Environment:
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
