ASUS NUC 12pro, i5-1240PIris Xe4xUSBLAN2xHDMIEU CordTall RNUC12WSHI500002I

ASUS NUC 12pro, i5-1240P/Iris Xe/4xUSB/LAN/2xHDMI/EU Cord/Tall RNUC12WSHI500002I

Series:

NUC

Model:

NUC 12 Pro

System Type:

Personal Computer

System Form Factor:

Ultra Compact Form Factor

Processor

CPU:

Intel Core i5 Mobile Processor 1240P

CPU Core Quantity:

12

Threads Quantity:

16

CPU Socket Standard:

Socket 1744

CPU Installed Quantity:

1

CPU Maximum Quantity Supports:

1

CPU Cache Size:

12 MB

Quantity of Mainboards Supported:

1

Performance-cores Quantity:

4

Efficient-cores Quantity:

8

Memory

Memory Type:

DDR4 SDRAM

Memory Form Factor:

SODIMM 260-pin

Memory Speed:

3200MHz(PC4-25600)

Provides Error Checking Method:

Non-ECC

Maximum Installable System Memory Storage Capacity:

64 GB

Memory Slot Total Quantity:

2

Memory Features:

Two DDR Channels

Controller

Integrated:

Storage Controller:

PCI Express 4.0 x4 (M.2 (Key M))

Storage Controller:

SATA (M.2)

Storage Controller:

SATA III-600 (1)

Plug-in-card:

Wi-Fi Controller:

Intel Wi-Fi 6E AX211 M.2 (Key E)

Video Output

Video Controller Form Factor:

Integrated

Video Chipset:

Intel Iris Xe Graphics

Video Memory Type:

Shared Video Memory

Audio Output

Audio Controller Form Factor:

integrated

Compliant Audio Standards:

High Definition Audio

Networking Specifications

Networking Form Factor:

Integrated

LAN:

Yes

Wi-Fi:

IEEE 802.11ax Wi-Fi 6E

Bluetooth:

Bluetooth 5.2

Data Link Protocol Supports:

2.5 Gbps

Gigabit Ethernet

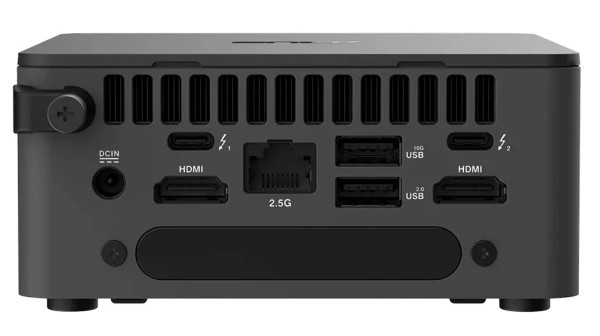

Interface Provided

HDMI:

2 (HDMI (Type A))

LAN:

1 (RJ-45)

USB 3.2:

3 (USB 3.2 (type A))

USB 2.0:

1 (USB 2.0 (type A))

Headset Port:

1 (3.5-mm minijack)

Thunderbolt 4:

2 (USB Type C)

Power

Power Device Type:

Power Adapter

Maximum Output Power:

120 W

Miscellaneous

External Color:

Black

Mounting Capability:

Desktop

Cable Included:

Power Cable (EU Plug)

Dimensions & Weight Device

Height (mm):

54 mm

Depth (mm):

117 mm

Width (mm):

112 mm

Nominal Weight:

1.7 kg
